• Reaction Kettle
  • Origin:  China
  • MOQ:  1 Unit
  • Shipping Method:  Sea,Air,Courier
  • Payment Term:  L/C;T/T;Western Union,Paypal

Product Description

The equipment is mainly used for the production chains such as hydrolysis, neutralization, crystallization, distillation, evaporation and storagein the industries of medicine, chemical, food and light industry etc. The reaction kettles are made of SUS304, SUS321, SUS304L and SUS316L etc.



SS304 orSS316L



Surface finish

1.Matt polish ;2 Mirror polish ;3 Acid wash and pickling ;4 sand blasting

Production Quality Management

Meet GMP medical standard

Design and produce standard

JB/T4735-1998 or GB150-2011 or ASME

Operate pressure

ATM or pressure vessel (-0.1~1Mpa)

Operate temperature

Minus 20 degree to 200degree

Welding type

Argon Arc Welding

Consrtuction type

Vertical type or Horizontal type


1.Single layer with jacket 3.Shell with jacket and insulation , with insulation

Jacket type

1.Dimple Jacket ,2.full jacket ,3.Coil jacket

Jacket function

Heating or cooling

Heating type

1.Electrical heating ,2.steam heating 3. hot water

Insulation material

Rock wool or Perlite

Standard Components

Manhole or hand hole ,Spray ball ,Inlet ,outlet ,spare port

Optional accessory

SIP ,vent filter ,sight glass ,Pressure gauge, temperature sensore PT100 ,level sensor ,Load cell ,valves ,PLC control or simple control cabinet ,Agitator and so on

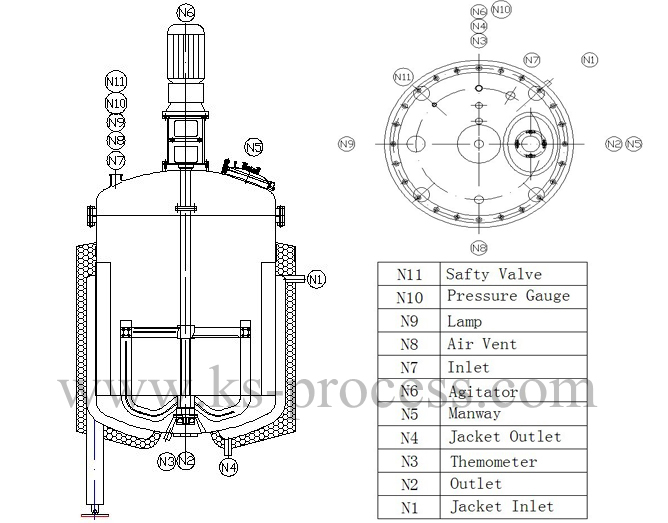

General Structure:
