• Conical Fermenter
  • Origin:  China
  • MOQ:  1 Unit
  • Shipping Method:  Sea,Air,Courier
  • Payment Term:  L/C;T/T;Western Union,Paypal

Product Description

The conical fermentation tanks have a dish top with cylindrical body.

The 60¡ăconical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast.  All tanks are food grade stainless steel. The cooling system is a dimple jacket with insulated polyurethane fill.  All tanks are designed for up to 14.7 PSI and tested at 30 PSI. The inside of the tanks are polished to Ra<0.8um and the outside is a brushed / mirrored finish. All tanks come standard with 25% head space on top of working volume. All Conical come standard with a Racking Arm.  Special orders may be placed along with custom features to your specifications.



SS304 orSS316L



Surface finish

1.Matt polish ;2 Mirror polish ;3 Acid wash and pickling ;4 sand blasting

Production Quality Management

Meet GMP medical standard

Design and produce standard

JB/T4735-1998 or GB150-2011 or ASME

Operate pressure

ATM or pressure vessel (-0.1~1Mpa)

Operate temperature

Minus 20 degree to 200degree

Welding type

Argon Arc Welding

Consrtuction type

Vertical type or Horizontal type


1.Single layer with jacket 3.Shell with jacket and insulation , with insulation

Jacket type

1.Dimple Jacket ,2.full jacket ,3.Coil jacket

Jacket function

Heating or cooling

Heating type

1.Electrical heating ,2.steam heating  3. hot water

Insulation material

Rock wool or Perlite

Standard Components

Manhole or hand hole ,Spray ball ,Inlet ,outlet ,spare port

Optional accessory

SIP ,vent filter ,sight glass ,Pressure gauge, temperature sensore PT100 ,level sensor ,Load cell ,valves ,PLC control or simple control cabinet ,Agitator and so on

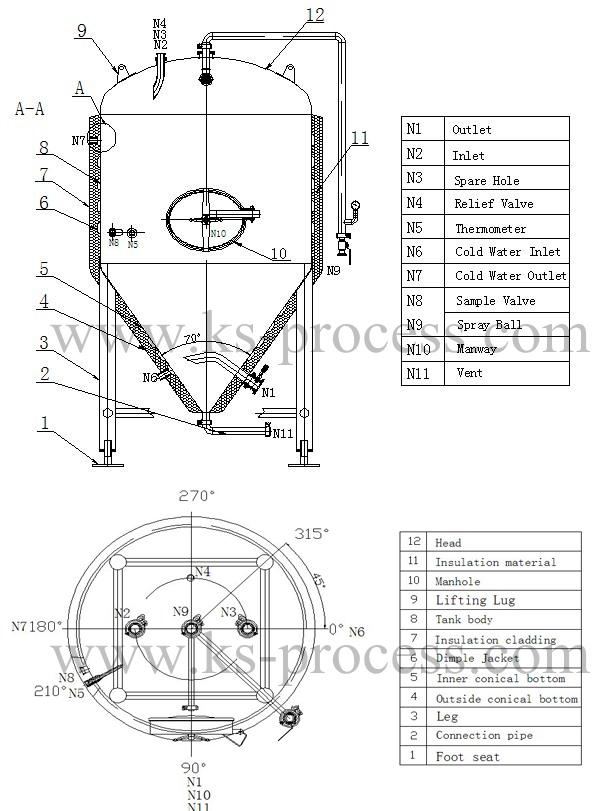

Structure Draft
